Plasma Surface Treatment is becoming one of the advanced technological solutions helping to improve product quality in many industries, especially electronics, automotive, aerospace, medical, and new energy. Thanks to its effective cleaning, activation, and surface coating capabilities, plasma completely removes dirt, increases adhesion, and creates coatings with outstanding properties, bringing a long lifespan to products. This article will explain what plasma is, the operating principles of the machine, and how plasma technology processes conformal coating for PCB boards.

1. What is a Plasma Surface Treatment Machine?

Plasma is the fourth state of matter, created when a gas is supplied with energy and ionized. In this environment, high-energy particles can directly impact the material’s surface, altering its chemical and physical properties.

Plasma surface treatment machines apply this principle to:

• Completely clean dust, grease, and impurities.
• Increase surface energy, helping glues, paints, or coatings adhere more firmly.
• Create special coatings such as moisture-resistant, anti-corrosion, hydrophobic, hydrophilic, or conductive layers.

As a result, plasma becomes the optimal alternative technology to traditional chemical treatment methods that are costly, complex, and environmentally harmful.

2. Common types of plasma surface treatment machines

In manufacturing, plasma systems typically operate based on four main methods:

2.1. Low-pressure plasma (Vacuum plasma)

• Generated in a sealed chamber at low pressure (10⁻³ to 10⁻⁹ bar).
• Suitable for precise surface treatment of printed circuit boards, electronic components, or before applying Parylene coating.
• Advantages: high cleaning efficiency, excellent process control.

2.2. Atmospheric plasma

• Operates under normal pressure conditions, requiring no vacuum chamber.
• Easily integrated into inline production systems.
• Uses clean/dry compressed air to generate plasma, making it safe and economical.

2.3. Corona treatment

• Based on high-voltage discharge, often used for plastic films or sheets.
• Not common for electronic circuits as it easily generates arcs that can damage components.

2.4. High-pressure plasma

• Appears in special discharge lamps.
• Rarely applied in industrial surface treatment, especially with PCBs.

In practice, vacuum plasma and atmospheric plasma systems are the two main series most widely used in the industry.

3. Operating principle of a plasma surface treatment machine

A typical plasma system includes:

• Plasma Generator: creates the necessary energy to ionize the gas.
• Nozzle/Jet: concentrates and directs the plasma to the surface to be treated.
• Process monitoring unit: controls the gas flow, processing speed, and plasma power.

The treatment process happens as follows:

1. The printed circuit board surface or material is brought into the plasma zone.
2. Ion particles, electrons, and free radicals in the plasma exert a strong impact, breaking down organic impurities.
3. The surface becomes completely clean while being activated to increase surface energy.
4. If necessary, a thin plasma coating can be created for long-term protection.

The strength of this technology is that it can be integrated directly into automated production lines, helping to save time and ensure uniform product quality.

4. Applications of plasma coating machines

4.1. In printed circuit board (PCB) and electronic component manufacturing

• Cleaning: completely removes dust, oil, impurities, and residual chemicals on the circuit surface.
• Activation: increases the adhesion of glue, conformal coating, and Parylene.
• Plasma coating: creates a layer that resists moisture, corrosion, or adjusts conductive properties.

4.2. In the automotive and aerospace industries

• Ensures the adhesion of paint layers, glues, and rubber gaskets.
• Provides waterproofing and anti-oxidation capabilities for metal and plastic parts.
• Increases bond durability under strong vibrations and harsh environments.

4.3. In medical and life sciences

• Cleans and sterilizes the surfaces of medical instruments.
• Creates biocompatible coatings, increasing compatibility with the human body (e.g., implants, catheters).
• Improves bonding capabilities in the production of precision medical devices.

4.4. In packaging technology and consumer goods

• Increases adhesion for printing inks and anti-scratch coatings.
• Improves labeling and printing capabilities on plastic and glass packaging.

5. Outstanding advantages of plasma machine systems

Compared to traditional surface treatment methods using solvents or wet chemicals, plasma brings many superior benefits:

• 100% surface cleaning: removes even difficult-to-treat organic impurities.
• Increasing surface energy: helps coatings, glues, and paints adhere more firmly and durably.
• Saving production costs: reduces the need for chemicals, washing water, and drying stages.
• Environmentally friendly: generates no toxic waste.
• High flexibility: applicable to many types of materials such as plastics, metals, glass, and composites.
• Inline integration capability: easily combined with automated production lines.

Thanks to these advantages, plasma surface treatment machines are gradually replacing traditional surface treatment methods in many industries.

6. The future of plasma technology in manufacturing

Current manufacturing trends focus on automation, greening, and cost optimization. Plasma meets all three of these criteria:

• Automation: easy to integrate into robotic production lines.
• Greening: minimizes toxic chemicals, protecting the environment.
• Cost optimization: cuts down on chemical treatment and drying stages, saving energy.

With the robust development of the electronics, energy, and medical industries, it is predicted that plasma systems will become the global standard for surface treatment in the coming decade.

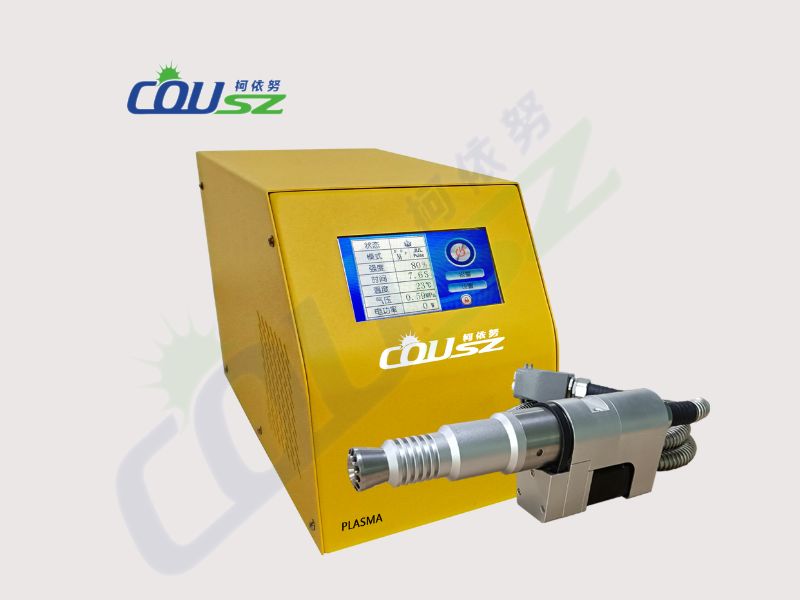

7. Why Choose COUSZ Brand Plasma Surface Treatment Machines?

The COUSZ brand has affirmed its position in the market with high-quality Plasma coating machines, optimal designs, and competitive prices. Some highlights include:

• Stable quality, high durability
• Free consultation on machine selection, tailored to actual production needs
• Clear warranty, fast technical support

Do not hesitate to contact us today to receive a free technical consultation and a special quote from our team of experts.
