In modern manufacturing industries such as electronics, automotive, engineering plastics, and medical devices, surface treatment quality plays a decisive role in determining product durability, reliability, and overall performance. The Plasma Surface Treatment Equipment RC1000S was developed to meet these demanding requirements, offering manufacturers an efficient, safe, and environmentally friendly surface treatment solution.

By combining advanced cold plasma technology with flexible operating control, the RC1000S helps businesses improve surface cleanliness, enhance adhesion, and ensure consistent production quality across a wide range of materials.

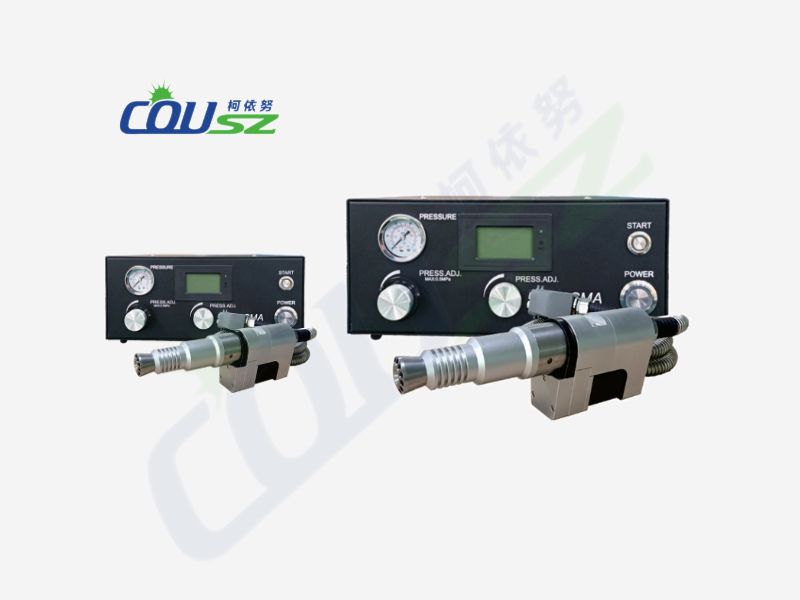

1. Introduction to the Plasma Surface Treatment Equipment RC1000S

The Plasma Surface Treatment Equipment RC1000S is a cold plasma-based system designed for surface cleaning and activation. It effectively removes oil residues, dust, organic contaminants, and microscopic impurities without the need for chemicals or mechanical abrasion.

Unlike traditional cleaning methods, cold plasma treatment works at low temperatures and does not damage the substrate. At the same time, it increases surface energy, significantly improving the bonding strength of adhesives, coatings, and printing inks. Thanks to these advantages, the Plasma Surface Treatment Machine RC1000S is widely used for treating electronic circuit boards, plastic components, metal parts, rubber materials, and composites before downstream processes such as bonding, coating, or printing.

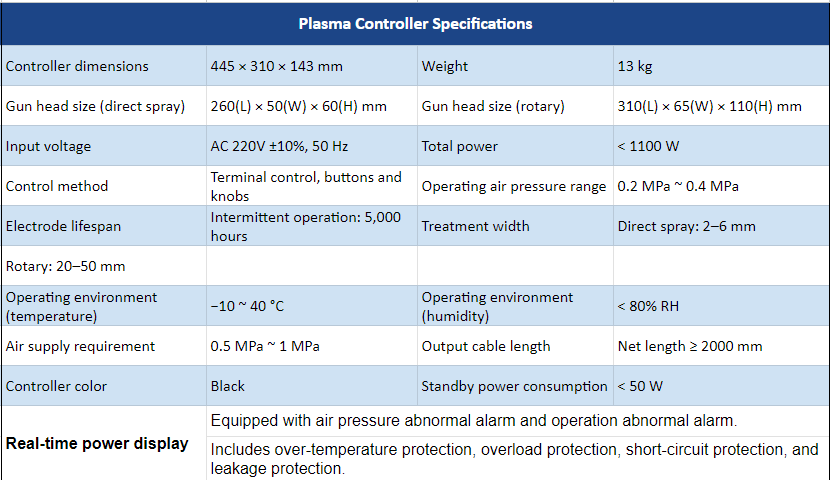

2. Technical Specifications of the Plasma Surface Treatment Equipment RC1000S

The Plasma Surface Treatment Equipment RC1000S is designed for industrial reliability and operational flexibility. Key technical characteristics include:

With its compact structure and intuitive control interface, the Plasma Surface Treatment Equipment RC1000S can be easily installed and operated in various production environments, from small workshops to fully automated manufacturing lines.

3. Operating Instructions for the Plasma Surface Treatment Equipment RC1000S

3.1 Equipment Connection

To ensure safe and stable operation, connect the system in the following order:

1. Grounding connection

2. Plasma gun

3. I/O interface

4. Gas hose

5. Power supply

Following the correct connection sequence helps prevent electrical risks and ensures reliable system performance during operation.

3.2 Parameter Adjustment

Gas pressure setting:
Set the pressure within the range of 0.15 – 0.4 MPa, according to the operating power level:

• 300 – 500 W: approximately 0.18 MPa

• 500 – 700 W: approximately 0.23 MPa

• 700 – 1000 W: approximately 0.25 MPa

Note: It is recommended to set the pressure slightly higher than the target value, as a small pressure drop may occur once the system starts operating.

Treatment distance:
Hold the plasma gun so that the material surface is positioned at the center of the yellow plasma zone to achieve optimal treatment results.

3.3 Setup and Safety Warnings

• Effective treatment time is typically 1–2 seconds

• WARNING:

  • Do not hold the material stationary in the plasma beam for an extended period to avoid heat damage or burning

  • Do not touch the plasma nozzle directly to prevent burn injuries

Strict adherence to safety guidelines not only protects the operator but also extends the service life of the Plasma Surface Treatment Equipment RC1000S.

3.4 Equipment Operation

• Switch on the power

• Press the Start button

• Adjust the power control knob until the plasma jet becomes stable and uniform

During operation, continuously observe the plasma output to ensure it matches the processing requirements of the material being treated.

Conclusion

With its powerful cleaning capability, flexible parameter adjustment, and high level of operational safety, the Plasma Surface Treatment Equipment RC1000S is an ideal solution for manufacturers seeking a modern, stable, and environmentally responsible surface treatment technology. It helps improve product quality, reduce process variability, and support long-term production efficiency in demanding industrial applications.
