F250 UV Meter

The F150 allows for precise UV intensity and UV power measurement in real-time.

It offers flexibility with selectable wavelengths, making it suitable for both UV LED lamps and traditional UV lamps.

Description
Reviews (0)

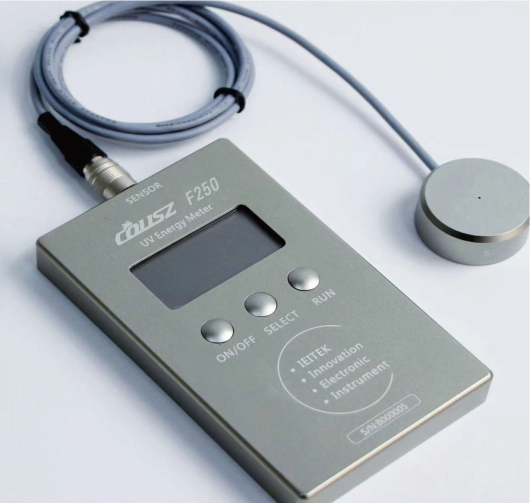

The F250 is a high-quality UV radiometer designed for superior accuracy. It measures UV intensity, accumulated energy, temperature, and records the time of the highest value. It is primarily used for testing UV mercury lamps and UV LED lamps.

The probe is externally located for ease of use.

Spectral Range Options:

UVA (320-390nm) @ 365nm
UVV (395-445nm) @ 405nm
UVV2 (445-500nm) @ 450nm

Customers must choose the desired spectral range at the time of purchase, as each UV meter can be configured for only one spectral range.

F250 Uv Meter

COUSZ F250 UV Meter Specifications

Spectral Range Options:

UVA (320-390nm) @ 365nm: Ideal for 365nm UV LED lamps and traditional UV lamps.
UVV (395-445nm) @ 405nm: Designed for 395/405nm UV LED lamps.
UVV2 (445-500nm) @ 450nm: Perfect for 450nm UV LED lamps.

Performance Parameters:

Intensity Range: 0-10 W/cm²
Measurement Range: 0-9999 J/cm²
Accuracy: ±5%
Temperature Range:
- Operating Temperature: 0-45°C
- Withstand Temperature: Up to 110°C for less than 10 seconds of continuous exposure

Power and Dimensions:

Power Supply: AAA * 3 batteries
Dimensions: 72mm (W) x 120mm (L) x 15mm (H)
Weight: Approx. 500g

Warranty and Maintenance:

Warranty: Free repair for non-human damage within one year from the date of purchase (excludes damage caused by external factors and photoreceptor LCD filter consumables).
Calibration: Annual calibration recommended for optimal performance.

The COUSZ F250 is a high-precision UV radiometer designed for reliable measurements, primarily for testing UV mercury lamps and UV LED lamps.
