3x15mm Line UV Led Curing System

Adjustable UV Intensity: Tailored to suit specific application requirements.
Compact Design: Minimal space required for installation.
Touch Screen Interface: Simple operation and real-time monitoring.
24 I/O Ports: Enhanced connectivity and control options.
RS232/485 Communication: Supports flexible data exchange and integration.
MES Functionality: Seamless integration with Manufacturing Execution Systems (MES).

Inquiry Now

Description
Reviews (0)

Cousz leverages extensive expertise in UV LED curing technology to deliver high-quality solutions for FPC manufacturing, camera modules, earphones, medical devices, and printing industries. Built with premium materials, our products ensure exceptional performance and fast delivery.

The 3x15mm Line UV LED Curing Machine, featuring a controller and LED lamp, is optimized for precise and efficient glue curing.

Controller Specification

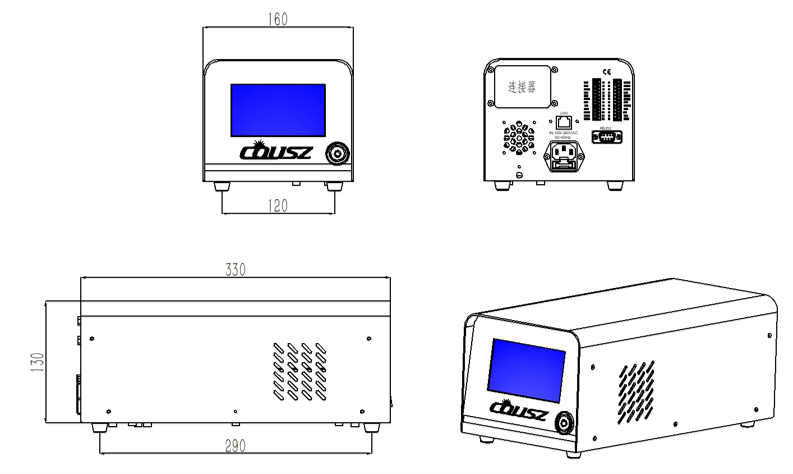

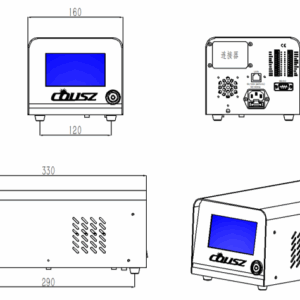

Dimensions	L330W160H130mm
Cooling	Fan Cooling
Material/Weight	About 3.5Kg, Black Sheet Metal
Set Lock	Built-in passwords to change function
Power	50W
Power Input	100-240V AC 50-60HZ
Power output	10%-100%
Display and Operation	Touch screen; time, intensity, mode adjustable
LED Head Number	1~4pcs
Error Warning	Overheat, fault warning
Control Method	Foot Pedal, SCM, PLC, RS232/RS485/TCP
LED Cumulative Time	Record accumulated using time

LED Head Specification
LED Area(mm)	3×15
Cooling	natural
Material/Weight	About 0.5Kg, Black Sheet Metal/Aluminum
Dimension(mm)
LED Life	>20000 H
Wavelength (nm)	365/385/395/405
Intensity(mw/cm^2)	adjust
Monitoring	Intensity, Temperature, etc
Connect Cable	2/5m(Customization)
Application	Car/phone camera module, etc
